As water heats up, it expands—a basic rule of physics. For instance, there have been cases where homeowners experienced leaks or even damage to their water heater’s pressure relief valve simply because there was no expansion tank in place. In a closed plumbing or heating system, this extra volume has nowhere to go.
The result? Pressure buildup that can damage your water heater, valves, or even your plumbing system.

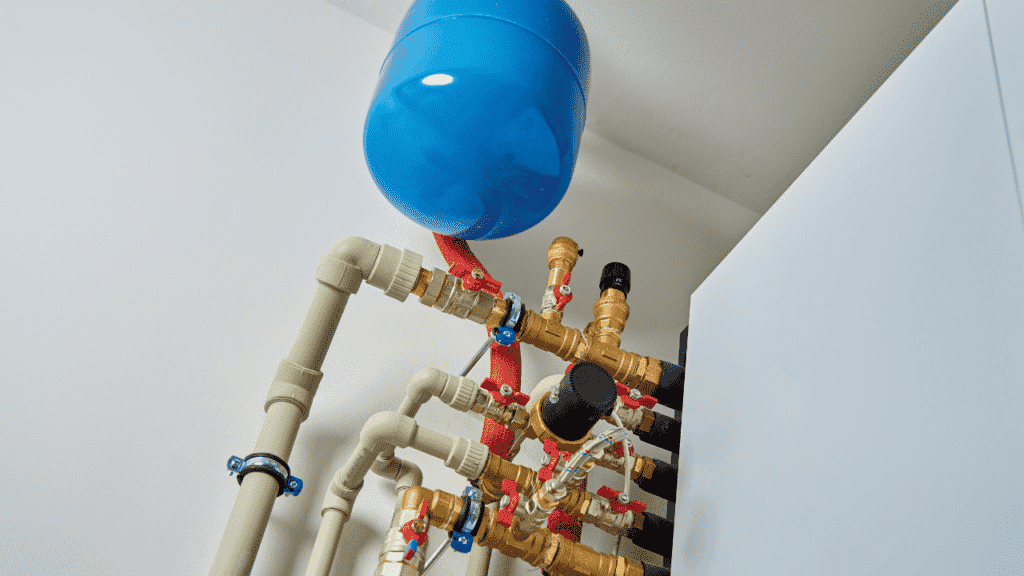

That’s where a thermal expansion tank comes in. It’s a small, often wall-mounted tank that acts as a safety buffer, absorbing excess pressure and helping your system run safely and efficiently.
What Exactly Is a Thermal Expansion Tank?
A thermal expansion tank is a pressurized vessel used in closed water heating and domestic plumbing systems. It helps control the pressure caused by thermal expansion of water when it’s heated. The tank prevents damage by temporarily storing the expanded water and maintaining balance in the system.
Without it, pressure increases can cause:
- Dripping T&P (Temperature & Pressure) valves
- Premature failure of water heaters
- Burst pipes or leaky joints
- Reduced efficiency and wear on appliances
How Does It Work?
Modern thermal expansion tanks have a rubber diaphragm or bladder inside that separates the tank into two halves:
- Water side: Connected to the water heater or plumbing
- Air side: Pre-charged with compressed air (usually 40–75 psi)
When water heats and expands, the extra volume pushes into the tank, compressing the air. This controlled absorption keeps system pressure stable.
Key Components:
- Diaphragm/Bladder: Prevents water and air from mixing
- Schrader Valve: Allows pressure checks and air refills (same as car tire valve)
- Steel Body: Durable exterior that resists corrosion and temperature changes
Old vs. New Expansion Tanks
Older expansion tanks were large, horizontal cylinders without an internal diaphragm, commonly used in mid-20th-century hydronic systems. According to historical plumbing standards prior to widespread code revisions in the 1990s, these tanks relied solely on a static air pocket, which made them prone to air absorption issues and required frequent maintenance. Over time, air would dissolve into the water, reducing their effectiveness. They needed regular draining and system bleeding.
Modern expansion tanks solve this by keeping air and water separated. Benefits include:
- Less maintenance
- More efficient pressure control
- Lower risk of corrosion and dissolved oxygen in the system
Where Are They Used?
1. Domestic Hot Water Systems (DHW):
In homes with backflow preventers or pressure-reducing valves, water has no path to expand. A thermal expansion tank absorbs that volume safely.
2. Hydronic Heating Systems:
Used in radiators, baseboard heaters, or underfloor systems, hydronic setups rely on stable pressure. Expansion tanks help buffer the constant contraction and expansion of water due to temperature cycles.
3. Closed-Loop Plumbing Systems:
If your home’s plumbing system is sealed from the municipal supply, an expansion tank becomes essential to avoid pressure spikes.
Signs You May Need a Thermal Expansion Tank
Not sure if you need one? Look out for:
- T&P valve leaking or dripping after using hot water
- Banging or knocking sounds in the pipes (known as water hammer)
- Visible bulges or rust near your water heater
- Repeated water heater repairs or short lifespan
- Plumbing system includes check valves or pressure reducers
Sizing Your Thermal Expansion Tank
To size your expansion tank properly, consider:
- Water heater capacity (gallons)
- Home’s static water pressure (PSI)
Recommended Sizes: (Based on typical manufacturer guidelines and residential plumbing standards)
| Water Heater Capacity | Pressure < 60 PSI | Pressure ≥ 60 PSI |
| Up to 60 gallons | 2-gallon tank | 3.2-gallon tank |
| Over 60 gallons | 3.2-gallon tank | 4.4-gallon tank |
Oversizing doesn’t harm the system, but undersizing can lead to premature failure or leakage.
Expansion Tanks in Automotive Systems
In vehicles, expansion tanks are used in cooling systems. They’re also called:
- Coolant overflow tanks
- Recovery bottles
They allow antifreeze and air to expand as the engine heats up and draw coolant back in as the engine cools. This keeps pressure stable and prevents coolant loss.

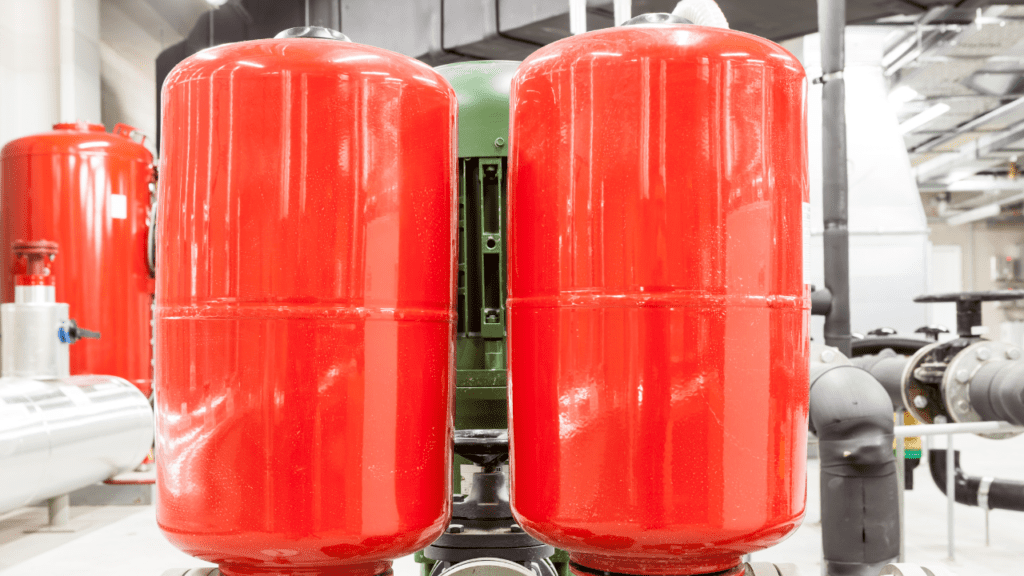

Commercial & Industrial Use
Larger versions of expansion tanks are used in high-capacity systems like:
- Commercial boilers
- Municipal pumping stations
- Central HVAC setups
These are sometimes called hydrophores or expansion chambers, and they help reduce water hammer, maintain pressure, and ensure system longevity.
Key Benefits
- Protects appliances from pressure-related damage
- Prevents T&P valve leaks
- Reduces risk of pipe failure
- Improves energy efficiency
- Required by plumbing code in most regions
How to Test If It’s Working
You can perform these simple checks:
- Tap test: Tap top and bottom with metal. They should sound different. If not, the tank may be waterlogged.
- Observe pressure surge: If hot water surges out quickly after long disuse, there could be pressure buildup.
- Check Schrader valve: If water comes out instead of air, the bladder is ruptured.
- Gauge the PSI: Use a tire gauge on the valve. PSI should match your home’s water pressure.
Final Thoughts
Thermal expansion tanks are small, affordable devices that are commonly installed by licensed plumbers and HVAC professionals to meet local plumbing codes. According to the International Association of Plumbing and Mechanical Officials (IAPMO) and EPA backflow prevention guidelines, these tanks are essential in protecting closed-loop systems from pressure-related failures. They extend the life of your plumbing system, save you from costly damage, and are now required by code in most areas. If you have a closed-loop system or signs of high pressure, installing one is a smart, proactive step.
